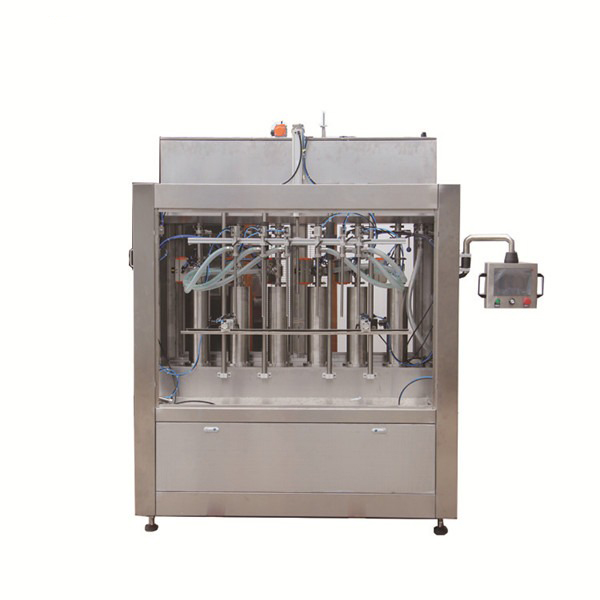

Idishlarni yuvish uchun suyuqlik to'ldirish mashinasi

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Texnik xususiyatlari

idish yuvish uchun suyuq plomba mashinasi
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Ta'rif

EIning Idorasi
ISO9001
GMP talablariga javob berish
longlife of service, low mainteinance rate

Asosiy funktsiyasi

Mashina yuqori aniqlikdagi to'ldirish mashinasi bo'lib, u shishani sanash, to'ldirish va qopqoqni avtomatik ravishda to'ldirishni yakunlaydi.

Xususiyatlari

1. Yilni tuzilgan, ko'rinishi yaxshi, ishlatish oson va yuqori darajada avtomatlashtirilgan.

2. Materiallar bilan aloqa qiladigan komponentlar zanglamaydigan po'latdan yasalgan, tozalash oson.

3. To'ldirish hajmi aniqlikni ta'minlash uchun plyonka klapanlari bilan boshqariladi.

4. Yuqori tezlikda va juda aniq to'ldirish klapanlari hech qanday oqishni ta'minlamaydi.

5. Yuqori samarali qopqoqni boqish tizimi bilan jihozlangan.

Til tanlovi

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Asosiy xususiyatlari:

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Turli xil xususiyatlar uchun foydali bo'lgan ko'plab parametrlarni yodlashi mumkin, barcha to'ldirish dozalari sensorli ekran tomonidan sozlanishi mumkin.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Asosiy texnik parametr

Mahsulot	Ism	Texnik parametr
01	Mashina o'lchami (L * W * H)	2200mm * 1400mm * 2800mm
02	Mashinaning og'irligi	Taxminan 1400 kg
03	Idishning ochilishi ichki diametri	≥φ35 mm
04	Kerakli idish	1Liter .2Liter
05	Konteyner balandligi	80-350 mm
06	Quvvatlantirish manbai	AC 380V; 50HZ
07	Quvvat	5Kw
08	To'ldirish aniqligi	≤ ± 1%
09	Havo manbai	0.6Mpa barqaror va toza siqilgan havo
11	To'ldirish uchun nozullar soni	13
12	Konveyer balandligi	900mm ± 50mm
13	imkoniyatlar	≤3200 botil / soat (suvni sinov sifatida oling)
14	Oziq-ovqat yo'nalishi bo'yicha shisha	Chapdan o'ngga

Tez ma'lumotlar

Turi: to'ldirish mashinasi
Ahvoli: Yangi
Ilova: kimyoviy
Paket turi: idishlar
Qadoqlash materiallari: yog'och
Avtomatik daraja: Avtomatik
Haydovchi turi: Pnevmatik
Kuchlanish: 220v
Quvvati: 3 kVt
Ish joyi: Shanxay. Xitoy (materik)
Tovar nomi: NPACK
O'lchov (L * W * H): 2200mm * 1400mm * 2800mm
Og'irligi: 1400
Sertifikatlash: Idoralar
Sotishdan keyingi xizmat ko'rsatiladi: Chet elda xizmat ko'rsatadigan mashinalarga xizmat ko'rsatadigan muhandislar
material: SS304
PLC: Panasonic
Sensorli ekran: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
