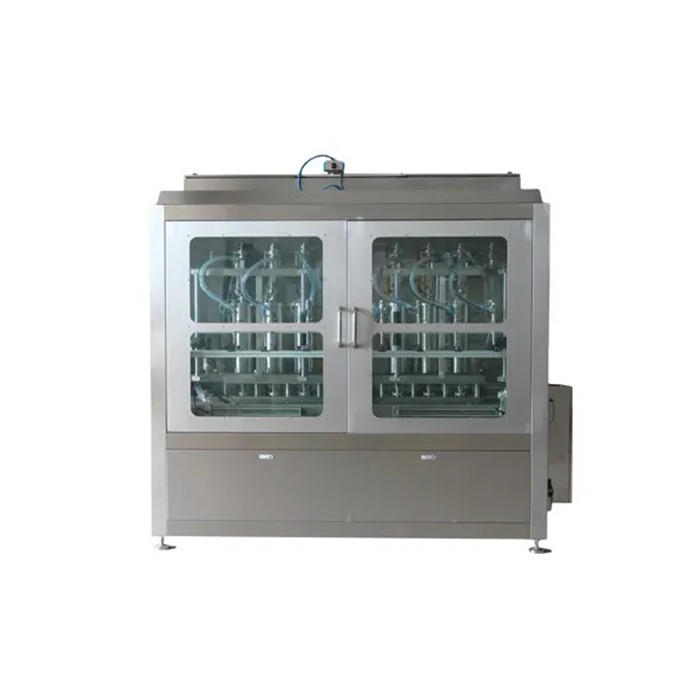

Automatic PET Bottle Filling Machine / Bottling Line / Project

PET butilkasini uch dona bitta mashinada chayish, to'ldirish va qoplash funktsiyalari birlashtirilgan. Chet elda ishlab chiqarilgan ilg'or texnologiyalarga asoslangan va suvni to'ldirishni qayta ishlash talablariga muvofiq ishlab chiqilgan

Asosiy xususiyatlari

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Ish joyining miqdori	32-sonli chayish, 32-sonli to'ldirish, 10-band
Ishlab chiqarish hajmi	15000BPH (500ml)
Havo manbaini bosimi	0.7Mpa
Havo iste'moli	1,2 m3 / min
Durulama suvi bosimi	0,2-0,25Mpa
Durulama suvi sig'imi	2,5T / soat
Asosiy vosita kuchi	3.2 kVt
Umumiy quvvat	4.8kw
O'lchov	4250X2150X2200mm (L × W × H)
vazn	5200kg

Shuningdek, biz avtomatik ravishda toza suv quyish zavodini ta'minlaymiz

U 4 ta asosiy qismni o'z ichiga oladi:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

To'liq chiziqning asosiy tavsifi:

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5. We provide the engineers for customer installation, training in customer's factory.

Modellar va tezlik ro'yxati

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Qo'llarni yuvish	8	14	16	24	32
To'ldirish klapanlari	8	12	16	24	32
Qo'llarini qarsak chalish	3	5	5	8	10
Kerakli PET / shisha idishlar (150ml dan 2000ml)
Imkoniyat (tezlik) 500ml bazasi	2000BPH	5000BPH	7000 BPH	12000 BPH	15000 BPH

Elektr komponentlari markalarini etkazib beruvchi

Asosiy tarkibi	Ta'rif etkazib beruvchi
PLC	Mitsubishi (Yaponiya), Siens (Germaniya)
Sensorli ekran	Vaynview (Tayvan)
Chastotani o'zgartiruvchi	Mitsubishi (Yaponiya), Siens (Germaniya)
Havo almashtirgichi	Shnayder (Frantsiya)
Breaker	Siemens (Germaniya)
Kontakt	Siemens (Germaniya)
Fotoelektrik kalit	Omron (Yaponiya)

Tez ma'lumotlar

Turi: to'ldirish mashinasi
Ahvoli: Yangi
Ilova: Ichimlik, kimyoviy, tibbiy
Paket turi: idishlar
Qadoqlash materiallari: plastik
Avtomatik daraja: Avtomatik
Haydovchi turi: elektr
Kuchlanish: 380V / 220V
Quvvat: 4.8 kVt
Qayerda joylashganligi: Shanxay, Xitoy (materik)
Tovar nomi: NPACK
O'lchov (L * W * H): 4250X2150X2200mm
Og'irligi: 5200KGS
Sertifikatlash: Idoralar, ISO, SGS
Sotishdan keyingi xizmat ko'rsatiladi: Chet elda xizmat ko'rsatadigan mashinalarga xizmat ko'rsatadigan muhandislar
Zavod: MASHINALAR MAHSULOTLARI
Shishaning hajmi: 150ml dan 2000ml gacha
Shishaning bo'yin diametri: 15-55mm
Shisha material: Plastik / shisha
Tezlik (500ml shisha taglik): 15000B / soat
Boshqarish tizimi: PLC sensorli ekran (MITSUBISHI JAPAN)
Qopqoq: Vint / Press qopqoq
Lift asansörü: Var
To'ldirish suyuqligi: mineral / toza suv
